- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A

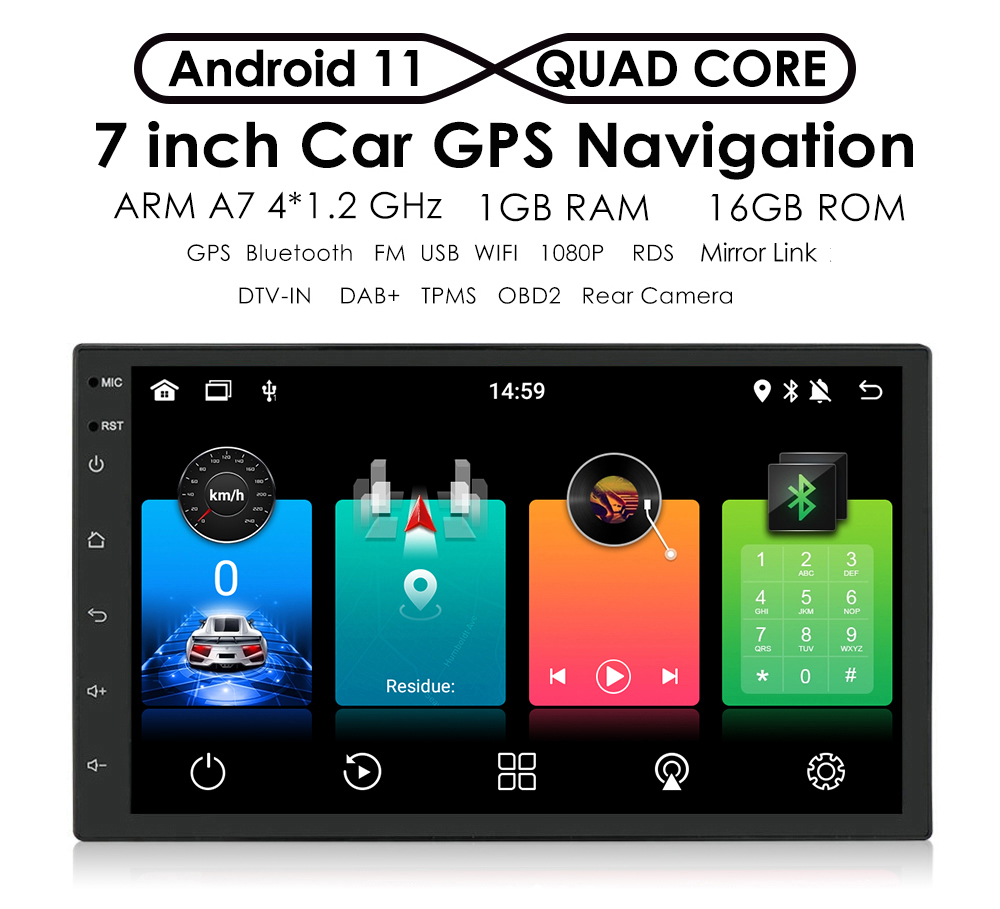

- Screen Size: 7 inch
General
- Operation System: Android 11
- CPU: QUAD CORE ARM Cortex A7 4*1.2 GHz
- RAM: 1GB
- ROM: 16GB
System
- Touch Screen: Yes
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Key Backlight Color: White
Display
- WiFi: Built-in WiFi Modem, support 802.11b/g/n
- 4G Dongle included: Not Included, you can contact us to buy it together
WiFi & 4G
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Maps Navigating
- Online Games: Yes, online play or you can download it from play store
- Online Communication: WeChat, Twitter, Facebook, Skype, Gmail, Whatsapp etc.
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT
Internet
- Format: MP3/WMA/MP2/OGG/AAC/MA4/FLAC/APE/WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB
Audio
- Format: Support AVI (H.264, DIVX, XVID), RM, RMVB, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG, DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG etc. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
Video
- Operation System: Android
- Offline Navi: Offline map data preloaded, ready to use after installation
- Online Navi: Yes, support online navigating apps.
- Voice Guidance: Yes
- Support 2D/3D Map Views: Yes
- Dual Zone: Yes, navigating while music playing
GPS
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- Bluetooth Music Control: Yes, play/pause/previous/next
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Setup: Auto Answer, Auto connect, Device name
- Built-in Microphone: Yes, on the front panel
Bluetooth
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- It doesn't support XM radio, but you can access the same channels using the XM radio app.
Radio
- Position: 2 USB Port, can be connected with Media/Camera/DAB+ Box / Smartphone
- Capacity: 2TB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P
- Touch Music Title to play directly: Yes
USB
- Built-in Car Recorder App: Yes, just connect a USB Camera to use this function
- Support HD CCD Camera: Yes, 1080P
- Play recorded Video directly: Yes
- Storing Position: Nand Flash/GPS Card/SD Card/USB Storage can be changed
- APK Installer: Support Android Package installer
- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
- Support Mirror Link function: Yes, support screen mirroring from iPhone and android smartphone
- Support TPMS: YES (Not Included, you can contact us to buy it together)
Additional
- WiFi/Hotspot/Bluetooth: Yes
- Brightness level adjustable: Yes
- Wallpaper: Wallpapers/Live Wallpapers/Gallery
- Sound: Key Tone & Volume
- Storage: Display Internal Storage/Nand Flash/Connected Device Storage
- Apps: Running Apps display/force stop/uninstall
- Security: Yes
- Accounts: Yes
- Languages and Input: more than 70 Languages and choose input method
- Backup and Reset: Yes
- Date and Time: Setting Date&Time by yourself or choose GPS/network-provided time
- Accessibility: Yes
- GPS: Yes, GPS application options/monitoring/sound mode/mixing ratio
- Driving safety: Watching Video, Reversing X-mirror/Volume, Reversing Trajectory/radar Display, Rear view ruler
- Amplifier: Rock/Pop/Jazz/Classic/Flat/Voice/Custom
- Steering Wheel Control: Yes
- Factory Settings: choose Radio Band and 88 Open-Unit-Logos
- About Device: Display Parameter Info.
Setup
- AUX Video In: One
- Rear-View Camera Video In: One
- DAB+ Box In: One
- Car DVR In: One
- Radio Antenna In: One
- GPS Antenna In: One
Input
- Audio Out: L,R
- Video Out: One
Output
- 1*Power Cable
- 1*Wifi Antenna (attached to the back panel)
- 2*USB Adapter Cable
- 1*GPS Antenna
- 1*RCA Harness
- 1*Rear Camera input RCA Cable
- 2*Install Fittings with Screws
- 1*Facia Frame
